Develop Home Endpoint

The /home endpoint will be the most basic route and view function in the entire application. The view function will simply retrieve all of the products in the database and return them as a dictionary.

util.py

At the top of your util.py file, import boto3

import boto3
import botocore
import os

table = boto3.resource('dynamodb').Table(os.environ['APP_TABLE_NAME'])

As you can see, the DynamoDB table is specified by an environment variable called APP_TABLE_NAME. To create environment variables for a Chalice project, you will need to add them to your config.json file with the environment_variables config option.

{
  "version": "2.0",
  "app_name": "chalice-workshop",
  "stages": {
    "dev": {
      "api_gateway_stage": "api",
      "autogen_policy": false,
      "iam_policy_file": "policies/policy-dev.json",
      "environment_variables": {
          "APP_TABLE_NAME": "chalice-demo-table"
      }
    }
  }
}

Standard Operations Function

Because the application will be making many requests to the database with different operations, formatted database operation requests can be passed to a standardized function and that function can then make the request to the database. This function will be utilized many times across the project.

def perform_standard_operation(params):
    """
    Performs standard operations (create, read, update, query, scan)
    on DynamoDB table based on the parameter payload that was passed
    :param params: the parameters to pass for DynamoDB operation
    :return: DynamoDB operation output
    """
    operation = params['operation']
    standard_operations = {
        'create': lambda x: table.put_item(**x),
        'read': lambda x: table.get_item(**x),
        'update': lambda x: table.update_item(**x),
        'query': lambda x: table.query(**x),
        'scan': lambda x: table.scan(**x)
    }

    # Perform the operation that was sent in the params payload.
    if operation in standard_operations:
        try:
            return standard_operations[operation](params.get('payload'))
        except botocore.exceptions.ClientError as e:
            return 'Client error: {}'.format(e)
        except botocore.exceptions.ParamValidationError as e:
            raise ValueError('Parameters invalid: {}'.format(e))

    else:
        raise ValueError('Unrecognized operation "{}"'.format(operation))

get_products()

This function will generate the required DynamoDB parameters retrieve all of the products in the database.

def get_products():
    # Create DynamoDB request params
    params = {
        'operation': 'scan',
        'payload': {
            'ProjectionExpression': 'SK, img_url, price, product_name',
            'FilterExpression': 'begins_with(PK, :pk)',
            'ExpressionAttributeValues': {
                ':pk': 'PROD#'}}}
    response = perform_standard_operation(params)

    products = response['Items']
    return products

api_endpoints.py

Now that you have created the utility functions required to get the products from the database, you want to add a route and view function to your api_endpoints.py file.

Don’t forget to import the utility functions you just developed at the top of this file

from chalicelib.util import get_products

Here is the route and view function:

@api_endpoints.route('/home', methods=['GET'], cors=cors_config)
def home_endpoint():
    """
    Returns the products from the database
    :return: products: the list of products on the application
    """
    # Call DynamoDB
    products = get_products()
    return products

Understanding the parameters

Notice that the routing information looks a bit different from what you have seen so far. First of all, the route is /home instead of /. Next, there is a parameter called methods and it has a value of ['GET']. This list specifies what HTTP methods are accepted on this endpoint.

The last parameter, cors, can be a boolean value (true, false) to dictate whether or not to allow Cross-Origin-Resource-Sharing. Alternatively, it can be a CORSConfig object from the Chalice library - this object type can specify a CORS configuration. This route uses a CORSConfig object called cors_config. Currently, this object does not exist, so initialize it at the top of your file.

cors_config = CORSConfig(allow_origin=os.environ['S3_BUCKET'], allow_credentials=True, allow_headers=['Content-Type', 'X-Amz-Date','Authorization', 'X-Api-Key', 'x-requested-with','Access-Control-Allow-Origin', 'Access-Control-Allow-Credentials'])

In this config, you will see that allow_origin is set to an environment variable called S3_BUCKET. Go to your config.json and make the necessary changes. For the S3_bucket variable, insert your S3 bucket’s static hosting endpoint.

{
  "version": "2.0",
  "app_name": "chalice-workshop",
  "stages": {
    "dev": {
      "api_gateway_stage": "api",
      "autogen_policy": false,
      "iam_policy_file": "policies/policy-dev.json",
      "environment_variables": {
          "S3_BUCKET": "[INSERT S3 BUCKET STATIC URL]",
          "APP_TABLE_NAME": "chalice-demo-table"
      }
    }
  }
}

Ultimately, this CORS configuration will ensure that Cross-Origin-Resource-Sharing is only allowed with your statically hosted website on S3.

Test the App

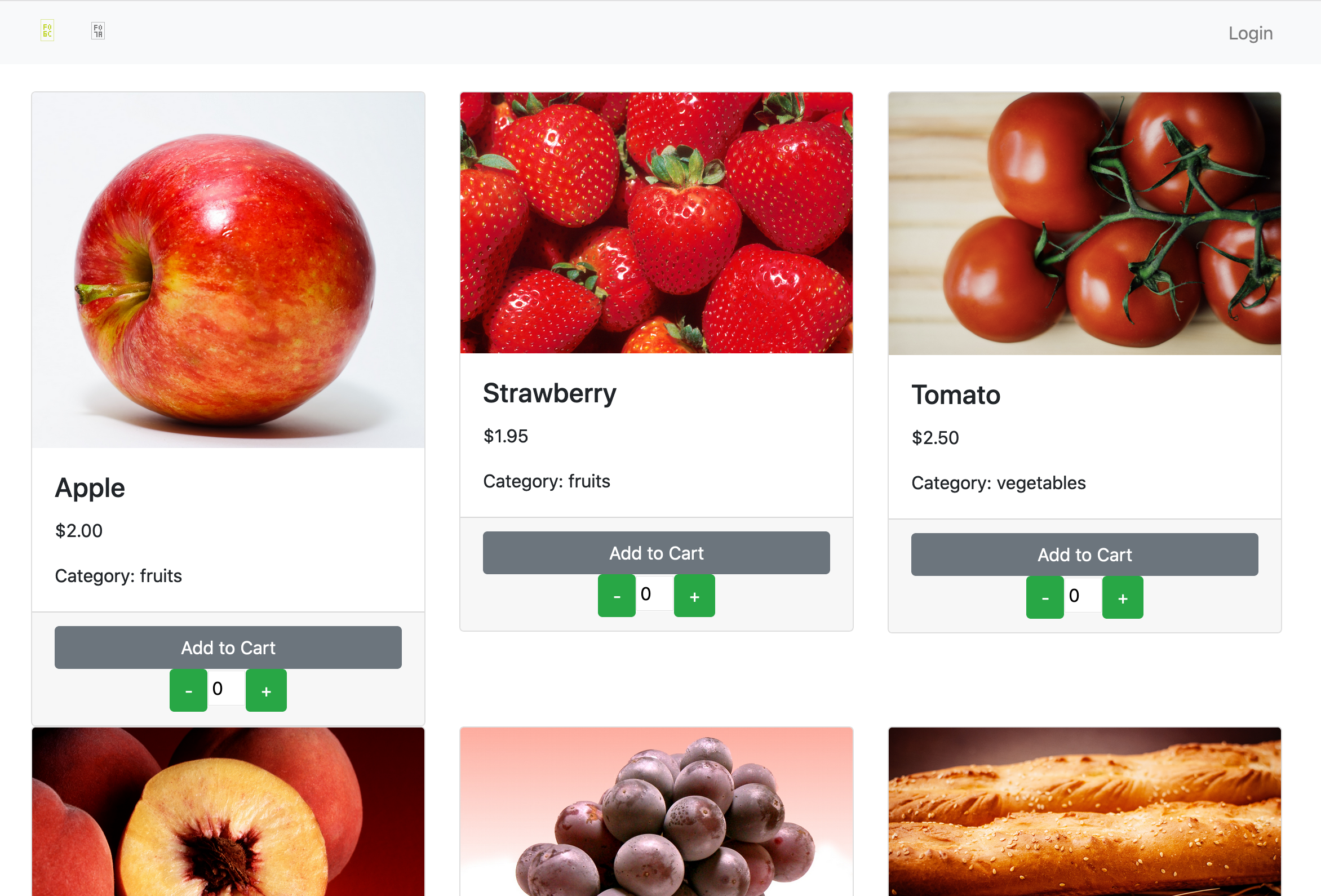

You can use Chalice deploy to quickly test your app by requesting the resulting REST API from the deployment. Alternatively, you can push your code changes to your remote CodeCommit repository (created when generating a CI/CD pipeline). After the code has gone through your pipeline and your app has been deployed with CloudFormation, you can test it by accessing your static website and seeing if the Angular app loads your products. The add to cart functionality will not work yet, but this still indicates there is a connection between the front-end and backend REST API.

TestHome
